What is cordless power tool battery capacity and voltage?
What is cordless power tool battery capacity and voltage? |
||||
|
|
||||
 |
Along with choosing a cordless power tool battery chemistry, the voltage of the tool (and therefore the battery) and the battery capacity also need to be decided upon before you buy. | |||
Battery Capacity |
||||
 |
The battery capacity is a measure of how much electrical energy the battery can store and release. | |||
 |
It is measured in ‘amp-hours’ (also known as ‘ampere-hours’ and abbreviated to ‘Ah’). It is the theoretical maximum number of amps (there is always some variation) that can be supplied by the battery over an hour. | |||
 |
For example, if a fully charged battery has a capacity of 10Ah then it can supply 10A of power over an hour period or 5A of power over two hours or 20A of power over half an hour and so on. | |||
 |
The number of amps drawn from a battery at any given time will depend on how much energy the cordless power tool requires before the motor starts (known as ‘no load’) and the effort required to complete the task (called ‘load’). | |||
 |
For example, drilling through wood takes less effort than drilling through steel and so will draw less power from the battery. The number of amps that can be drawn at any one time is limited by the circuits in the battery that prevent overheating. | |||
 |
||||
 |
You can usually choose your own battery capacity so long as the voltage is correct (although always check your cordless power tool technical specifications). | |||
 |
Battery capacity is linked to how much electrode material is in the cell which means that batteries with larger capacities are bigger, heavier and more expensive than smaller ones. | |||
 |
The larger the battery capacity, the longer it will need to recharge. You can work out an approximation of how long it will take by dividing the battery capacity by the number of amps the charger is putting into the battery (this can be found in the technical specifications or after ‘Sec.’ on the base of the charger, see Section Printed Information). This will give you an overestimation of the charging time in hours. | |||
 |
For example, a 4Ah Li-ion battery charged in a charger that has an output of 9A charges in about:
4 / 9 = 0.44 hours = 44 minutes This estimation is about 2% longer than the actual charge time. |
|||
 |

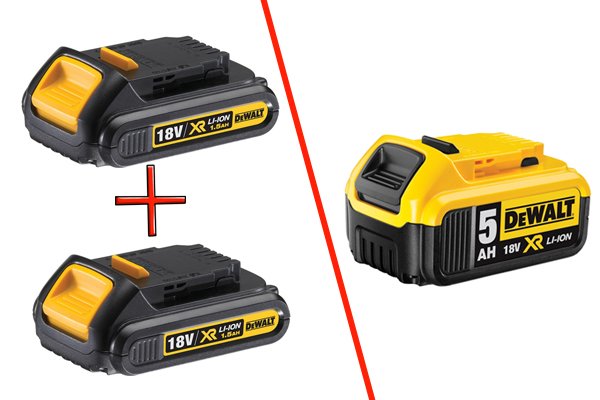

It is sometimes better to purchase two batteries with smaller capacities, particularly if you need to use the tool constantly because you can charge one while using the other. | |||

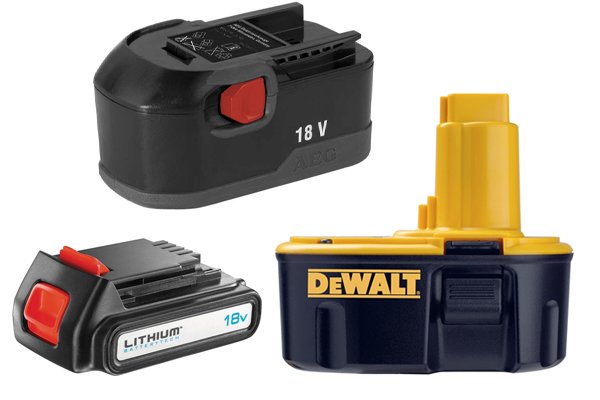

Battery voltage |
||||
 |
The voltage indicates how powerful the battery is. The higher the voltage, the more powerful the battery. | |||
 |
Higher voltages allow larger, tougher components (such as large screws and big drills) to be used, or harder materials to be worked on. | |||
 |
On the other hand, increasing the voltage tends to increase battery size and weight which is pointless if you only need to use the cordless power tool for light work. | |||
 |

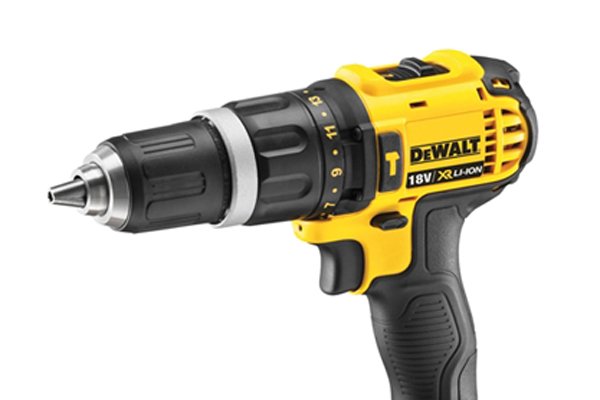

Most cordless power tools have the correct battery voltage printed on the side of the tool. This information will be in the product specification too. | |||
