	How are samarium cobalt (SmCo) magnets manufactured?


	Shop for Magnets


			Samarium cobalt magnets are made from an alloy of samarium and cobalt. To create SmCo magnets, manufacturers usually follow these steps:

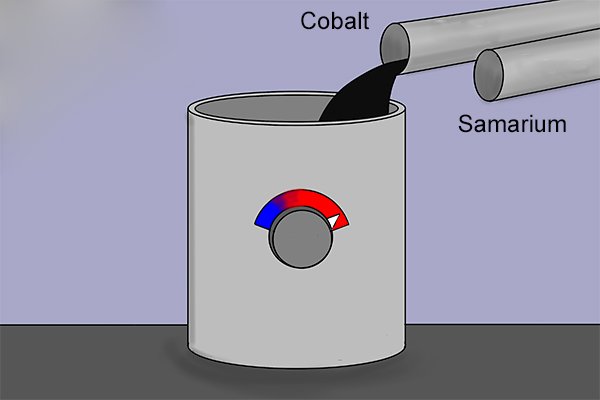

			Step 1 – Strip casting First, the two materials are ground up and melted in a large oven at 14426.7°C (26000°F). When they are cool, the metals are all mixed together to create small chips.

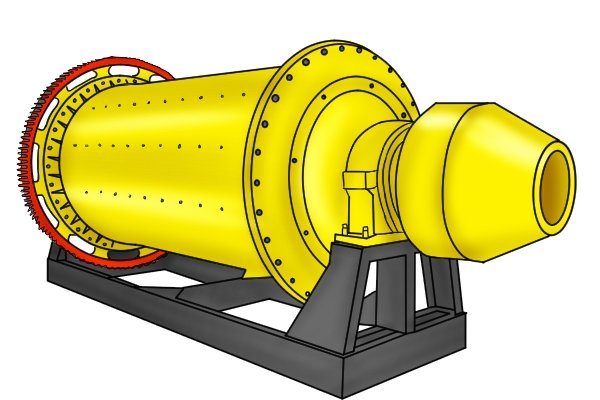

			Step 2 – Milling The small chips of metal compound are ground down to a fine powder and mixed together thoroughly in a ball mill.

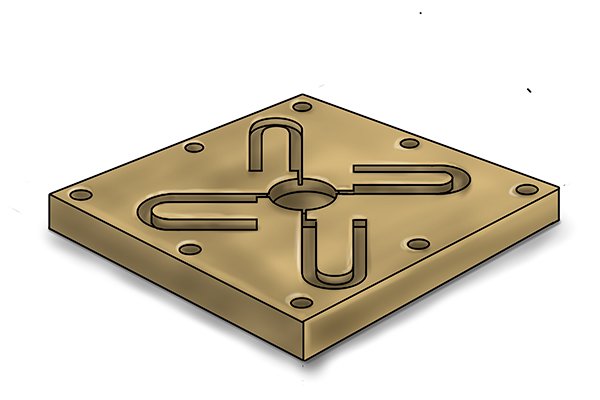

			Step 3 – Moulding The powder is then weighed and pressed into the moulds, which can be any shape of magnet.

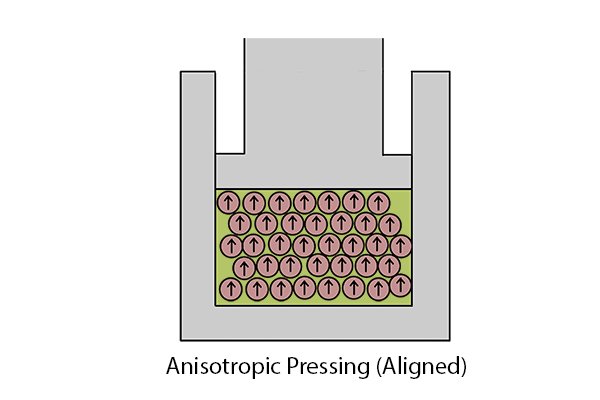

			Step 4 – Pressing The moulds are placed into a pressing machine which places a total of 21000psi of pressure onto them.



			Step 5 – Sintering The shaped metal is then placed into an electric oven, which heats the metal compound gradually from 250°C (482°F) to 900°C (1652°F).

			The magnets can take from 20 to 36 hours to be heated depending on the quality of the end magnet. A top quality magnet will take a lot longer in the oven than a low quality one, as a slower temperature rise will produce a greater magnetic force. For more information on sintering, see the Magnets glossary

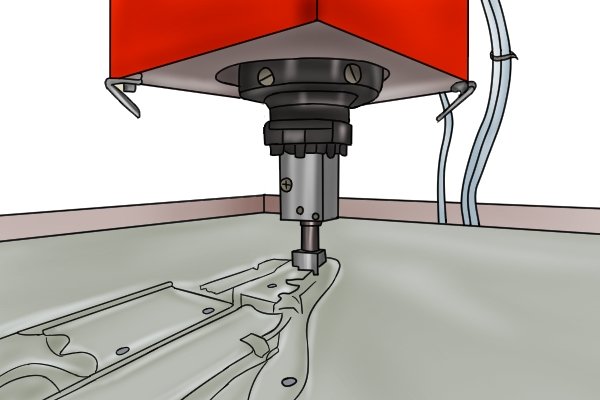

			Step 6 – Machining After the magnets have been removed from the oven and left to cool, they are ground down to the correct size. A diamond-coated machine takes off millimetres of metal until the required size is achieved.

			They need to be machined with a constant flow of water due to the heat created in the machining process.

			Step 7 – Coating The magnets are then coated to prevent them from oxidising. For more information on the types of plating and coatings, see the page: What are magnets coated with?

			Step 8 – Magnetising Finally, the alloy is magnetised. A magnetising machine envelops the magnet in a high strength magnetic field by sending 2400 volts of electrical current through it to create a permanent samarium cobalt magnet.
