How to insert a mortar rake in an SDS plus drill?


	Shop for Mortar Rakes

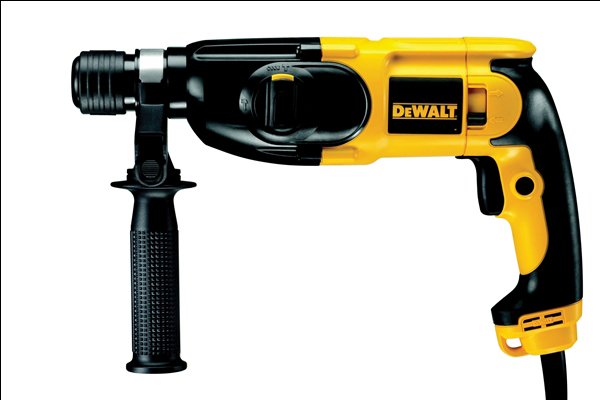

		On SDS plus drills, the chuck works differently to that on standard power drills.

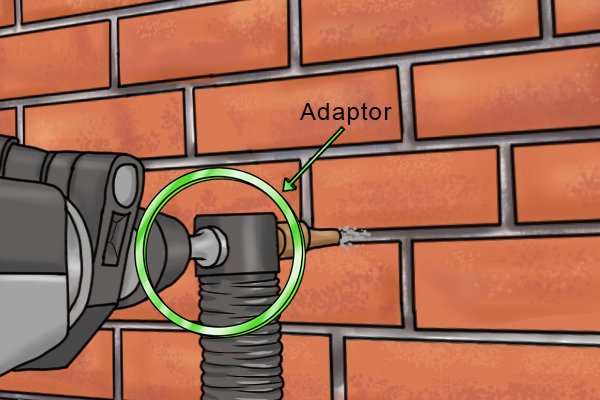

		As a result, a mortar rake designed for an SDS plus drill needs to be screwed onto an adaptor that sits between the mortar rake and the chuck.



		Removing an old bit

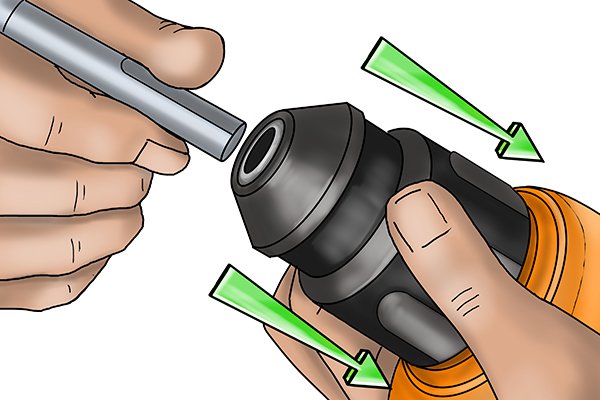

		Step 1 – Pull down sleeve To remove a bit from the chuck, pull down the chuck sleeve/outer collar.

		Inserting a mortar rake

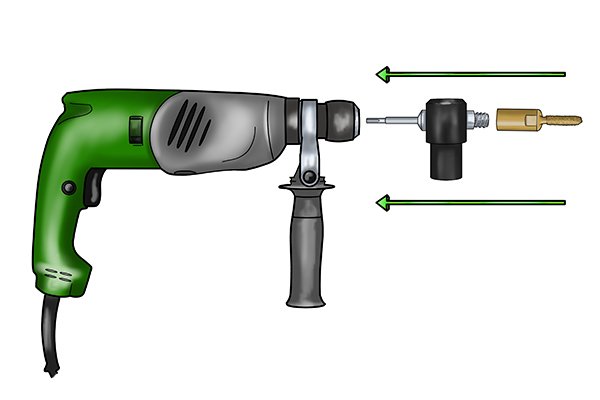

		Step 1 – Install adaptor, mortar rake and dust extraction A mortar rake screws onto an adaptor before being inserted into a SDS Plus Drill.

		Step 2 – Install mortar rake Push the mortar rake adaptor into the chuck.

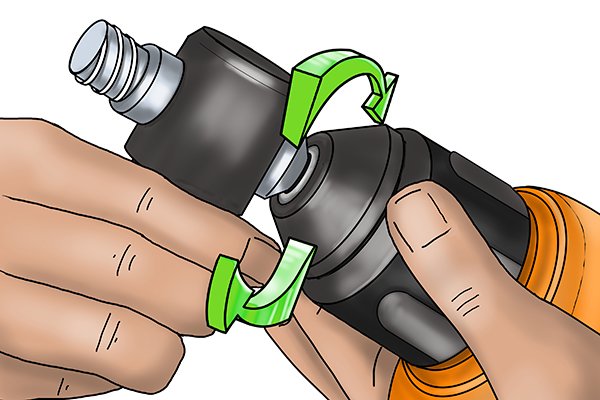

		Step 3 – Turn adaptor Turn the adaptor until it slots into place.

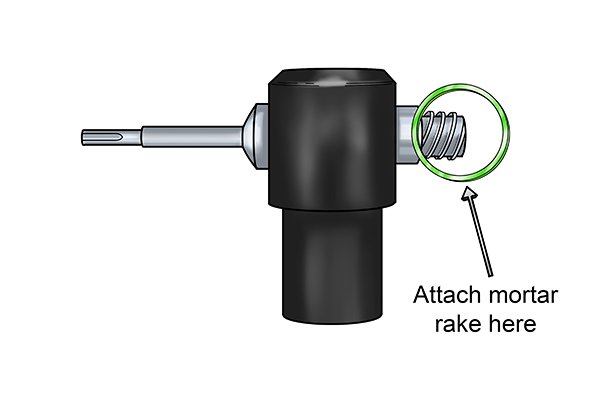

		Step 4 – Install mortar rake On the other end of the adaptor, you can install the mortar rake.

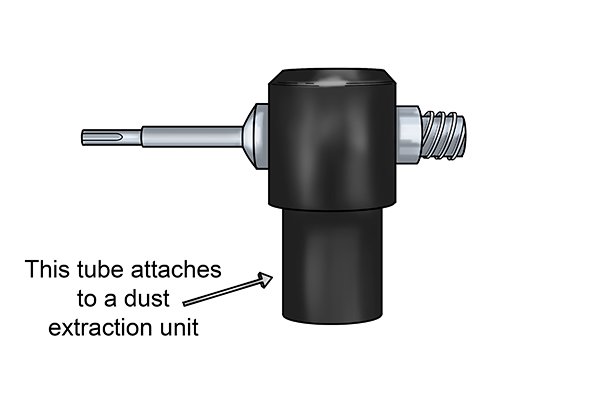

		Step 5 – Attach dust extraction unit To the adaptor you can then add a dust extraction unit.
